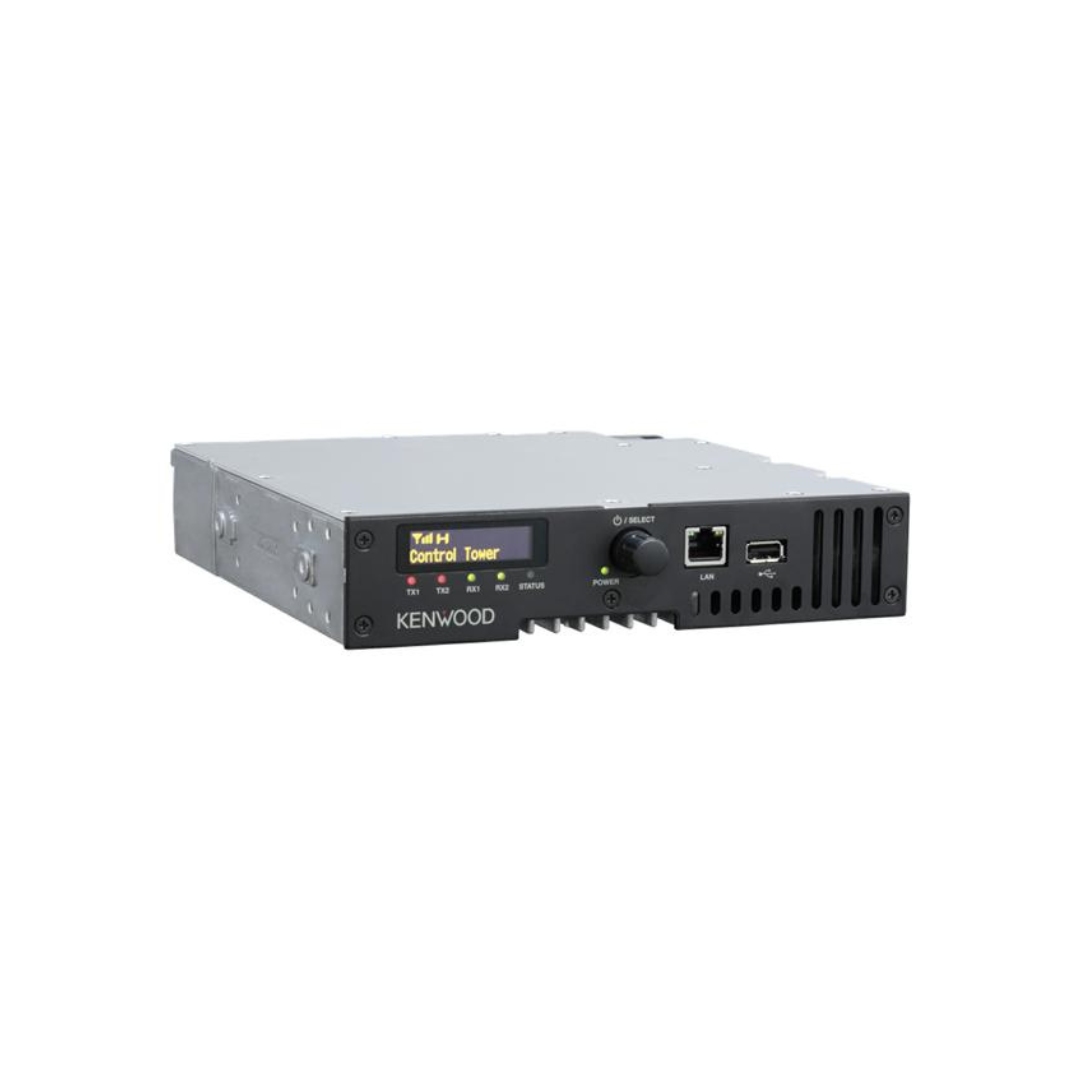

Kenwood NXR-1800E2
The Kenwood NXR-1800E2 is a digital and analogue radio repeater for organisations operating long-range two-way radio communications networks. It is the perfect successor to existing Kenwood DMR and NXDN repeaters and can be swapped in for immediate use. It is available as an analogue version or with a pre-installed digital key. The digital key version is set up with DMR tier II or NXDN conventional protocols.
The NXR-1800E2 provides its powerful network-boosting functionality in a modern and compact device. Two NXR-1800E2 devices fit in a 1U height, 19-inch rack, and hardware is built for hassle-free maintenance. Hardware includes a thermal-controlled cooling fan, an external power supply, a USB-A connector ready for audio accessories and an external in/out pin from DB25.
Device status and information is immediately visible on a large 17-inch OLED display.
The NXR-1800E2 long-range two-way radio network repeater features 50 – 1 W RF output power, up to 32 channels and non-repeat simplex/semi-duplex modes for analogue and NXDN digital. Devices also feature a built-in IP network adapter, multicast routing and SNMP protocol for direct reporting to a generic system.
The Kenwood NXR-1800E2 also supports G.711 audio codec (for test console and third-party applications), IP remote management, IPIF to external applications (for IP console and OTAP), a built-in SIP IF without external IP console or gateway (digital only), IP remote control interface (IPRCI), enhanced security and CW ID, hot standby system redundancy and a hang timer.
Key Features
- Like-for-like successor existing DMR and NXDN repeaters such as the TKR-D710/D810 and NXR-710/810.
- DMR Tier II or NXDN conventional digital protocols.
- Available as an analogue version (upgradable with digital key).
- 50/40 W – 1 W RF output power (Up to 50/40 W@50%, 25 W@100% duty cycle).
- Fit two repeaters in a 1U height, 19-inch rack.
More Information
Find out more about the Kenwood NXR-1800E2 in the brochure.
SKU: NXR-1800E2
